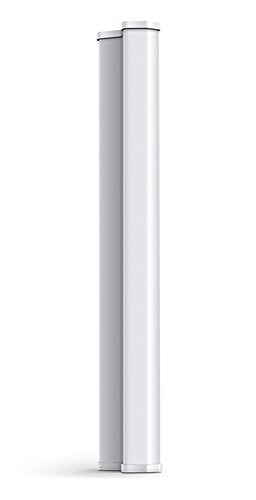

TP-Link TL-ANT5819MS 5GHz 19dBi 2x2 MIMO Sector Antenna, Ideal for Point-to-Multi-Point connections

The Pharos Sector Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. These antennas feature high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Multi-Point coverage.

Specifications:
• Frequency: 5.0 - 6.0 GHz
• Impedance: 50?
• Gain: 19dBi
• VSWR(MAX.): 1.8 Max
• HPOL Beamwidth: 120° (6dB) & 90° (3dB)
• VPOL Beamwidth: 120° (6dB) & 90° (3dB)
• Elevation Beamwidth: 4°
• Polarization: Vertical & Horizontal
• Mounting: Pole Mount
• Electrical Downtilt: 0°
• F/B Ratio: 28dB Min
• Survival Wind Speed: 241km/h
• Standards: RoHS,WEEE
• Interfaces: RP-SMA Female
• Dimension: 700×133×57mm
